Shark Fin Antenna with FM/AM + GPS/BeiDou GNSS, 28dB High Gain LNA, 9-16V Wide Voltage - IP65 Waterproof for Car/Truck/RV (Black)

FM/AM & GNSS Functionality

Supports FM radio (87.5-108MHz) and AM radio (522-1710KHz); Integrated GPS L1 (1575.42MHz) and BeiDou B1 (1561MHz) for precise navigation and entertainment.

High-Gain Low-Noise Amplifier (LNA)

28±2dB gain with ≤2.0dB noise coefficient; ≤2.0 VSWR ensures stable signal reception in urban or remote areas.

Wide Voltage & Durable Design

Operates on 9-16V DC (40±10mA current); IP65-rated housing withstands extreme temperatures (-40°C to +85°C) and 95% humidity for automotive use.

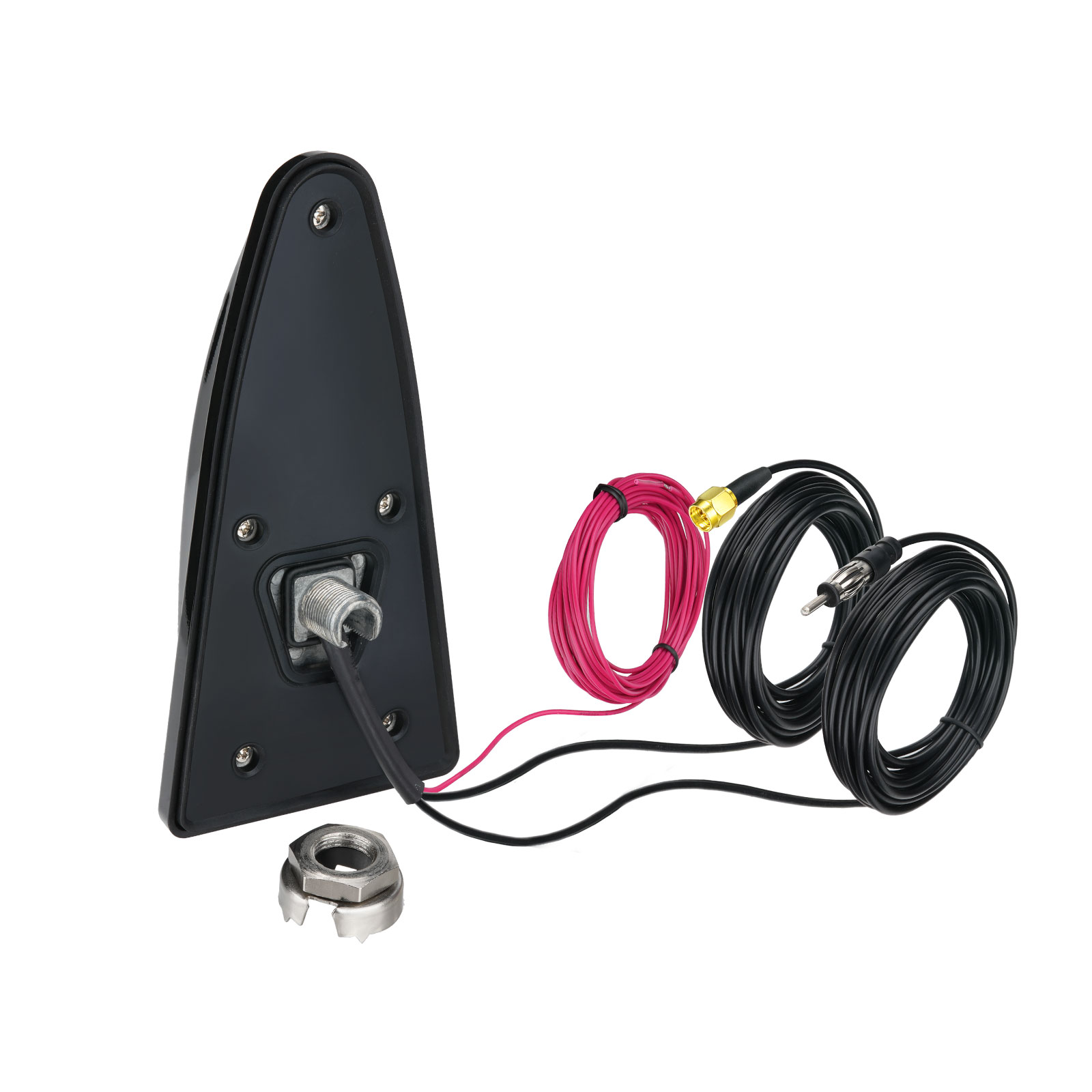

Easy Vehicle Integration

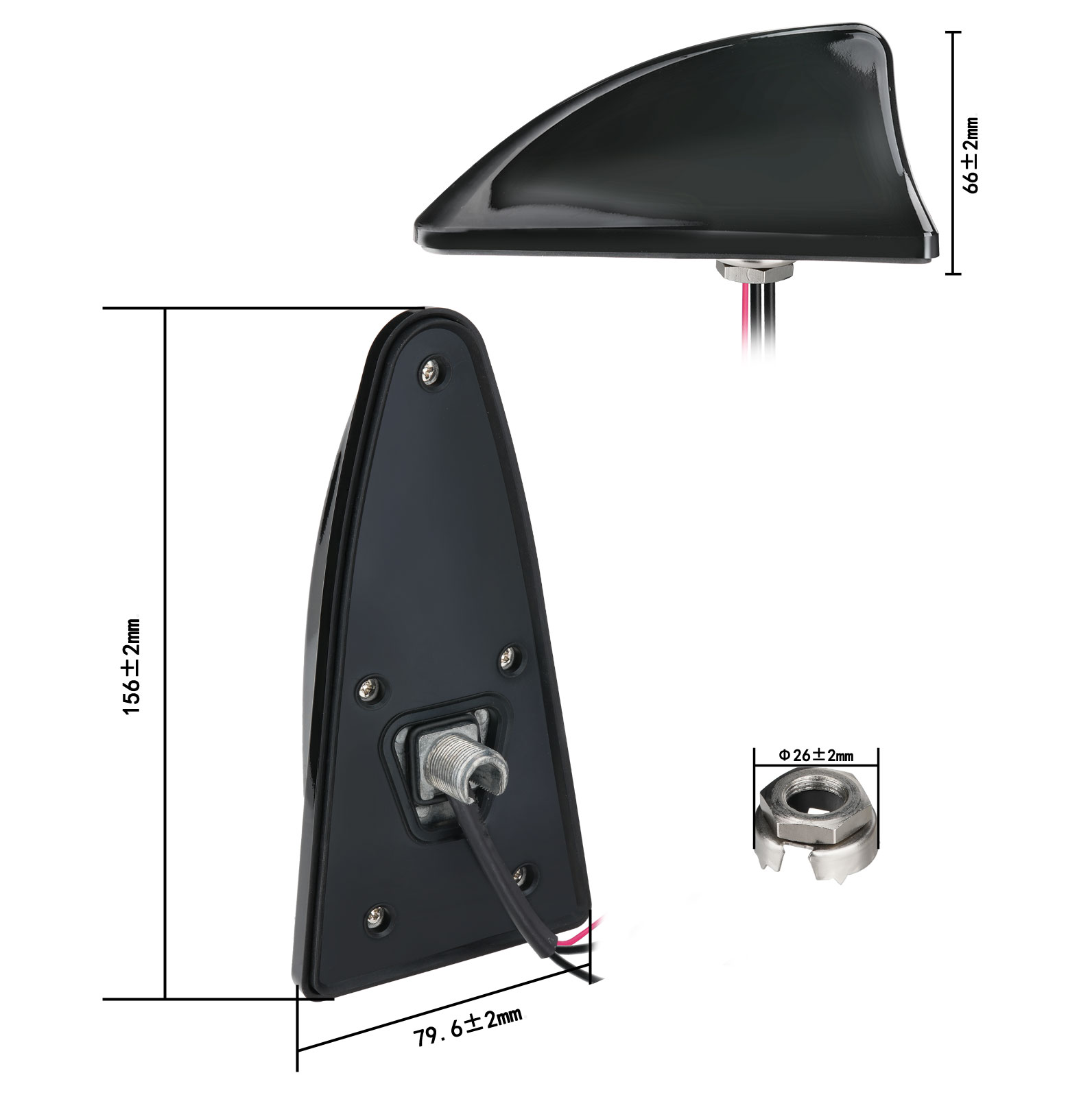

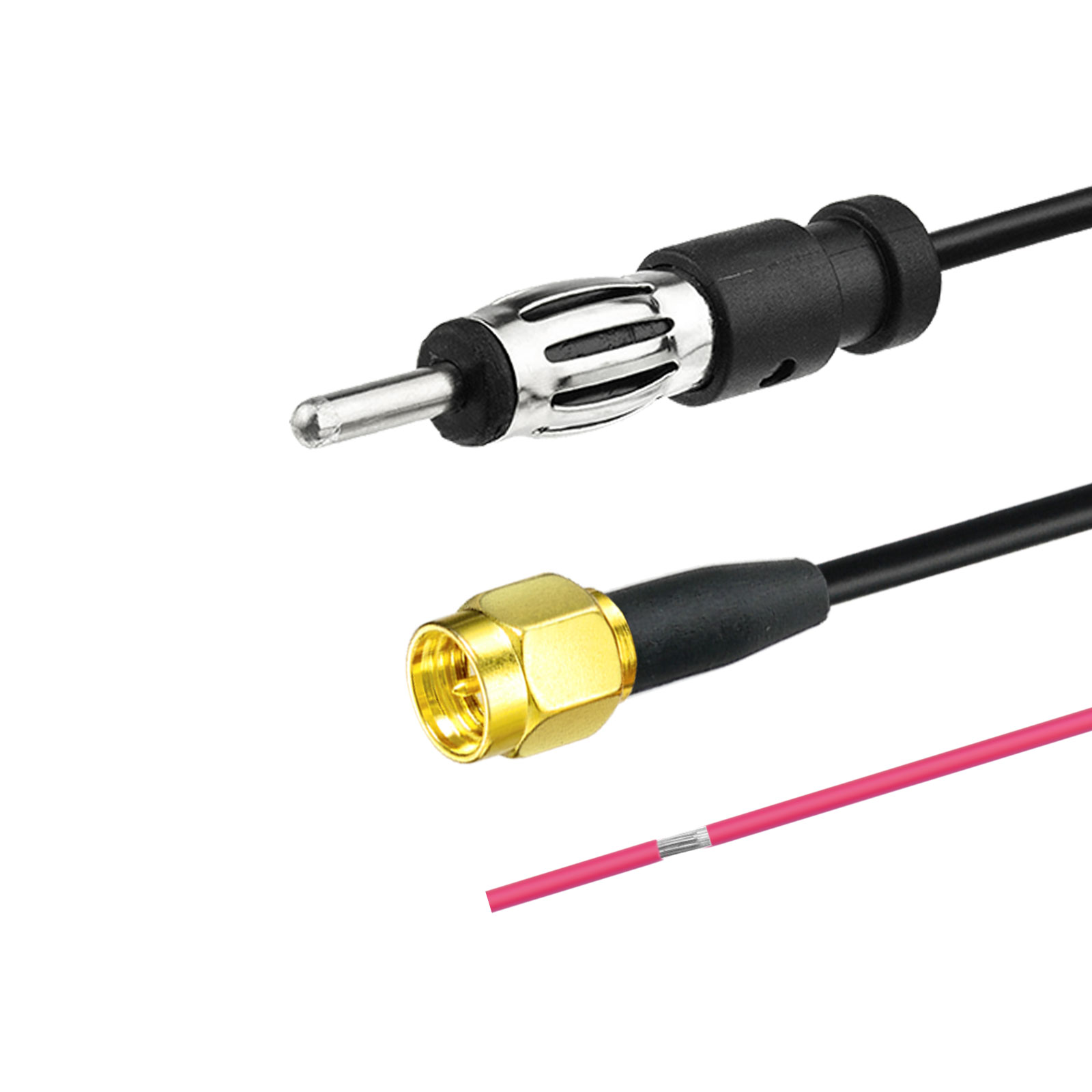

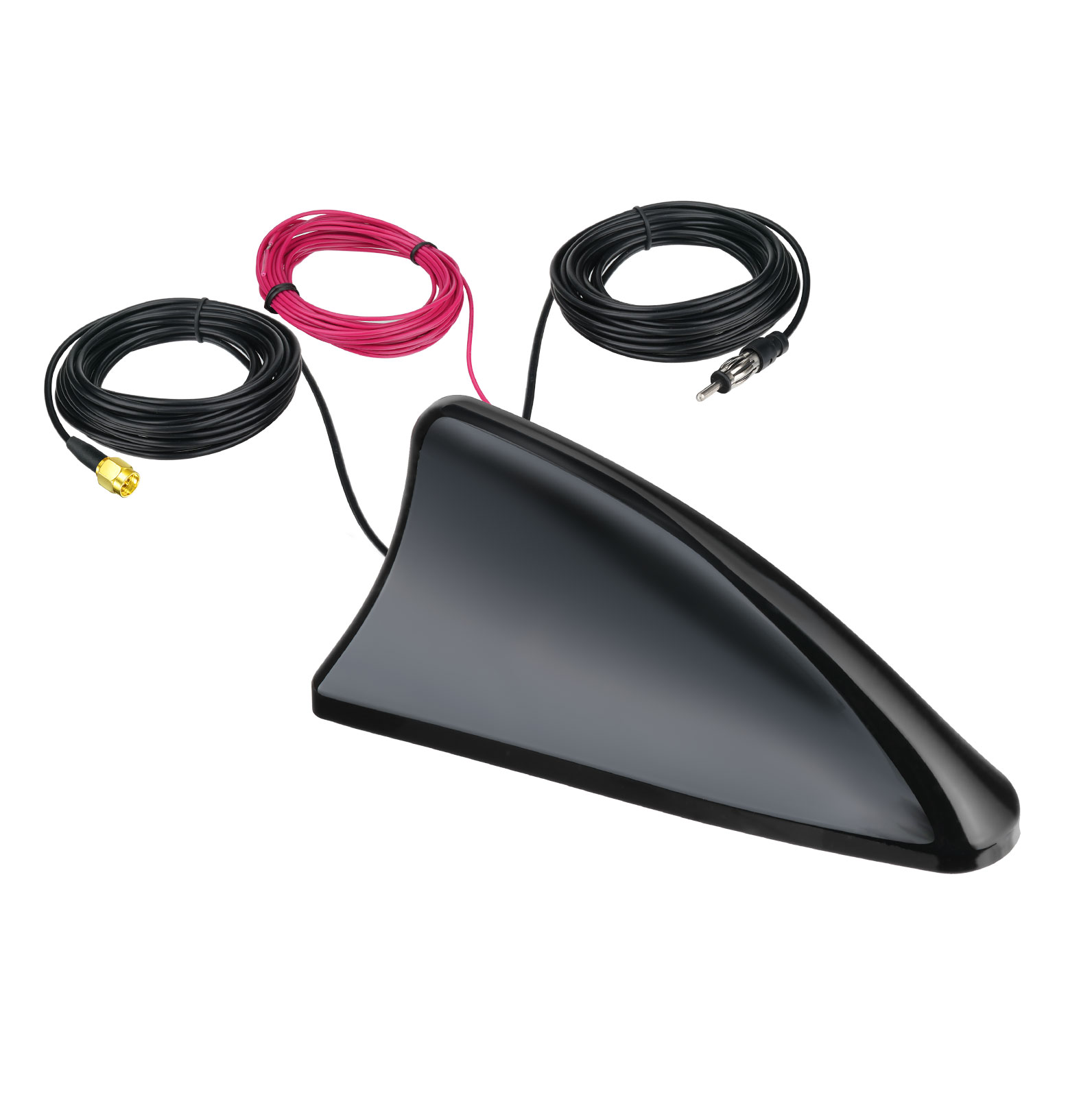

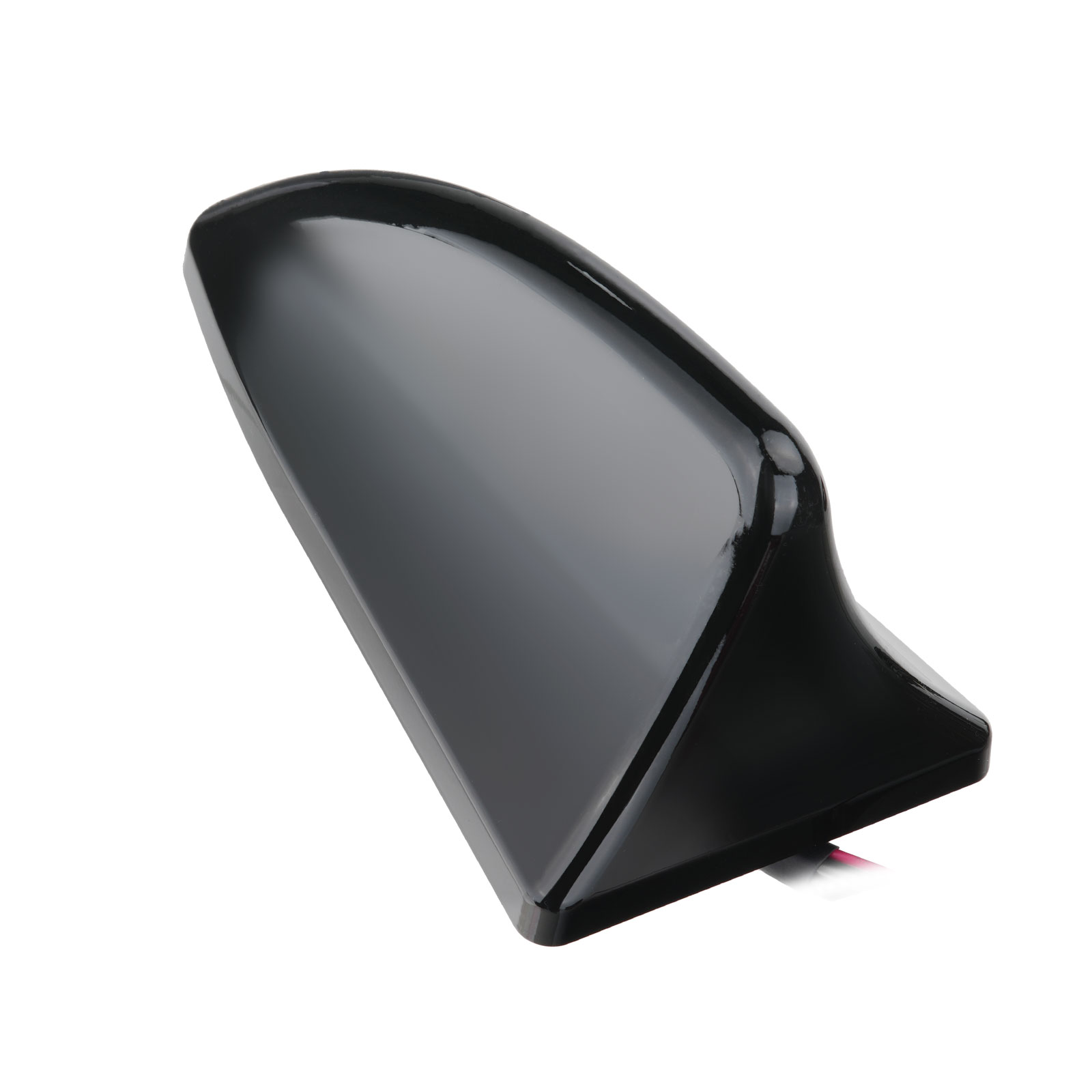

Shark fin aerodynamic design with SMA connector; 0.5Nm torque ensures vibration-resistant installation on cars, trucks, or RVs.

Product Description

Multi-Functional Shark Fin Antenna for Automotive Navigation & Entertainment

The A-FM/AM+GNSS antenna combines FM/AM radio reception with high-precision GNSS positioning, designed for seamless integration into vehicles, RVs, and commercial trucks.

FM/AM Radio Module:

Frequency Range:

FM: 87.5-108MHz

AM: 522-1710KHz

Gain:

FM: 17-23±2dB

AM: 0-5±2dB

VSWR: ≤3.0

Impedance: 50±5Ω

GNSS Module:

GPS L1: 1575.42±2.5MHz

BeiDou B1: 1561±2.5MHz

Bandwidth: >10MHz

Gain: 3.0Bi (70x70mm patch)

Polarization: Right-Hand Circular (RHCP)

LNA Specifications:

Gain: 28±2dB

Noise Figure: ≤2.0dB

Operating Voltage: 3.0-3.6V DC

Current Consumption: 8±3mA

Environmental Resilience:

RoHS/REACH compliant

Operating Temperature: -40°C to +85°C

Storage Temperature: -40°C to +90°C

Humidity: 0% to 95% (non-condensing)

Applications:

Automotive FM/AM radio reception

Fleet vehicle tracking and navigation

RV and truck GPS systems

Off-road adventure equipment
