Shark Fin Antenna with FM/AM + GPS/BeiDou GNSS, 28dB LNA, IP65 Waterproof - 9-16V Wide Voltage for Car/Truck/RV (Black)

FM/AM Radio & GNSS Functionality

Supports FM (87.5-108MHz), AM (522-1710KHz), GPS L1 (1575.42MHz), and BeiDou B1 (1561MHz); RHCP polarization ensures stable navigation and clear radio reception.

High-Gain Low-Noise Amplifier (LNA)

28±2dB gain with ≤2.0dB noise coefficient; ≤3.0 VSWR for FM/AM and ≤2.0 VSWR for GNSS, minimizing signal loss in urban or remote areas.

Industrial-Grade Durability

IP65-rated housing withstands extreme temperatures (-40°C to +85°C) and 95% humidity; Resists vibration, dust, and corrosion for automotive use.

Wide Voltage & Energy Efficiency

Operates on 9-16V DC with low current consumption (30±10mA for radio, 8±3mA for LNA); Compatible with most vehicle electrical systems.

Easy Installation & Aerodynamic Design

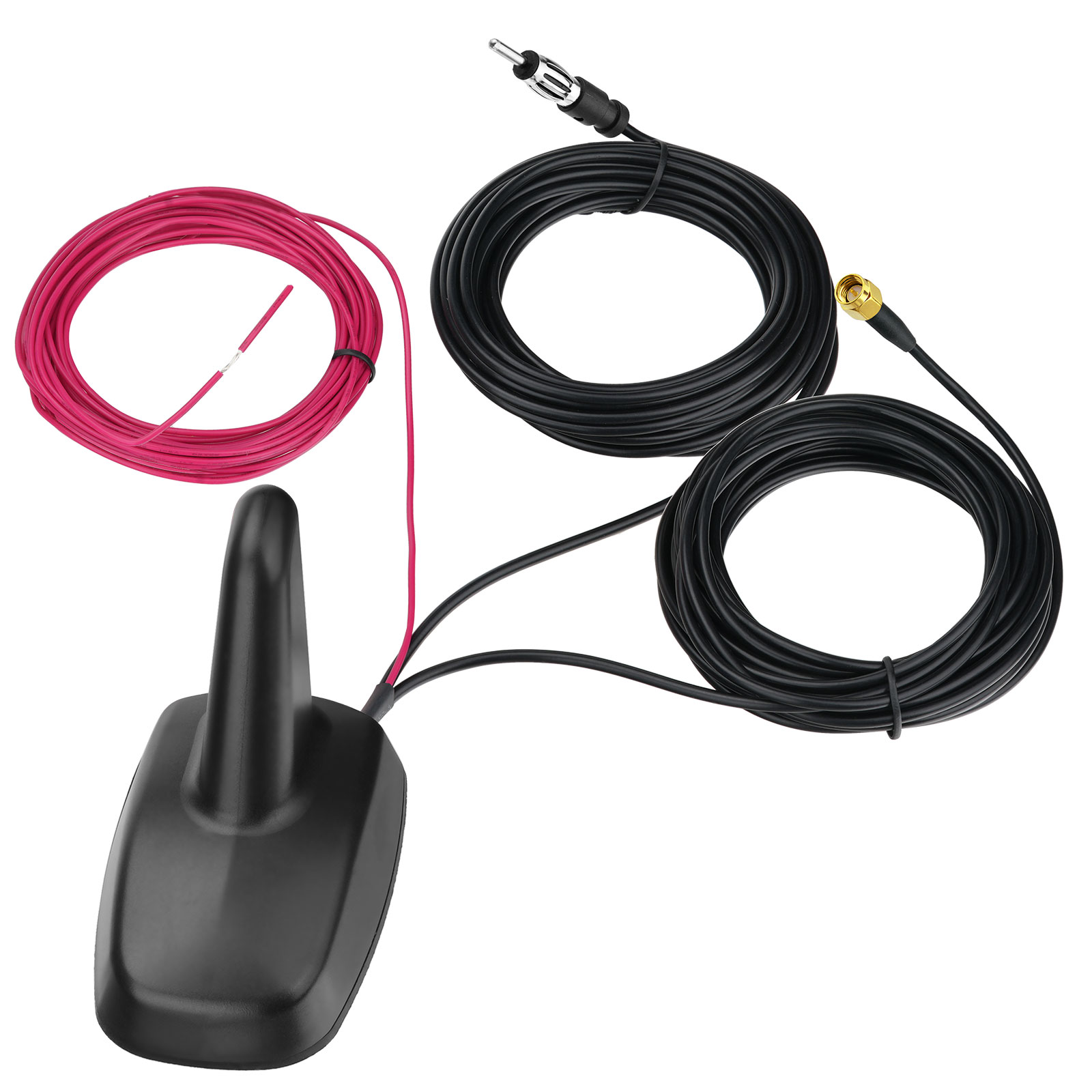

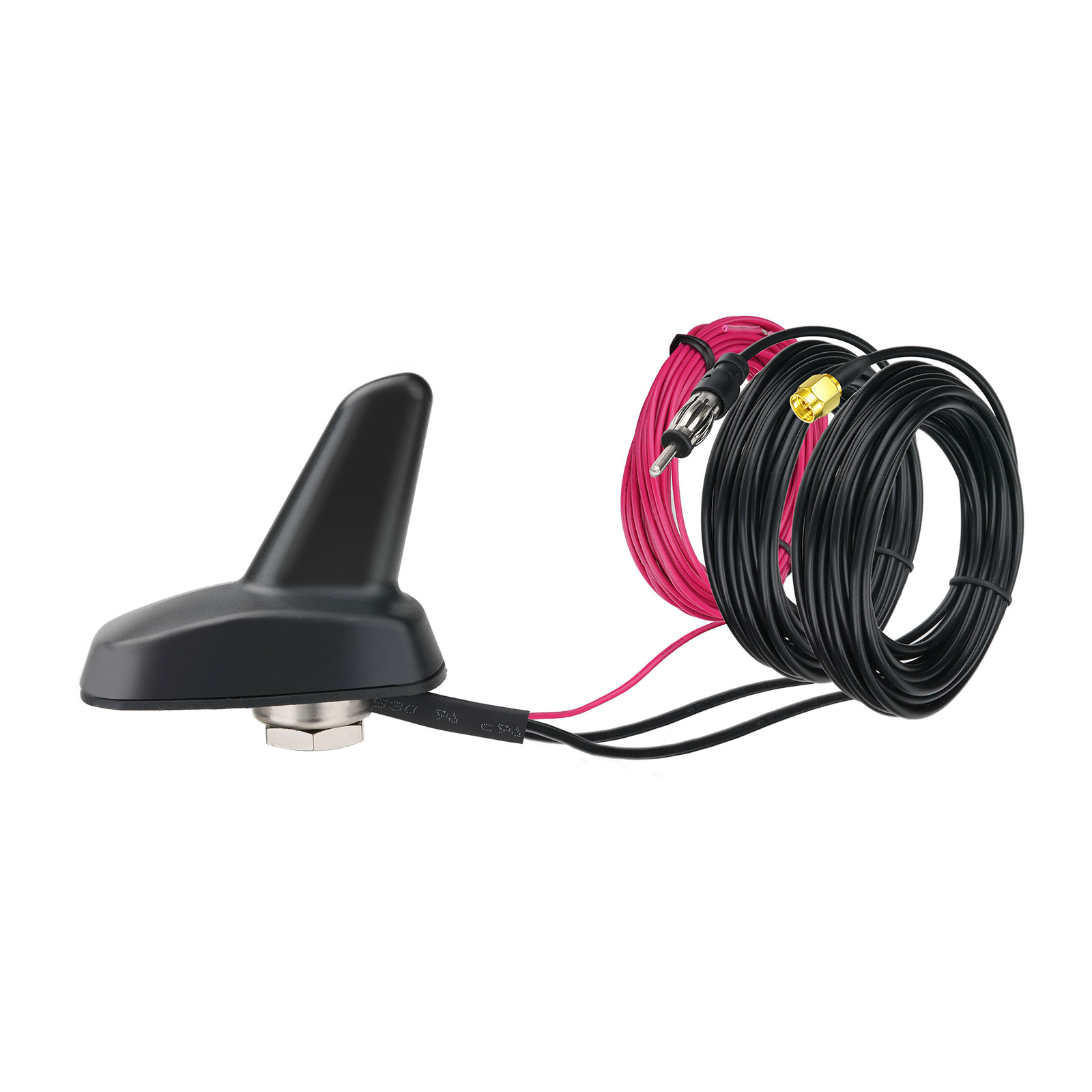

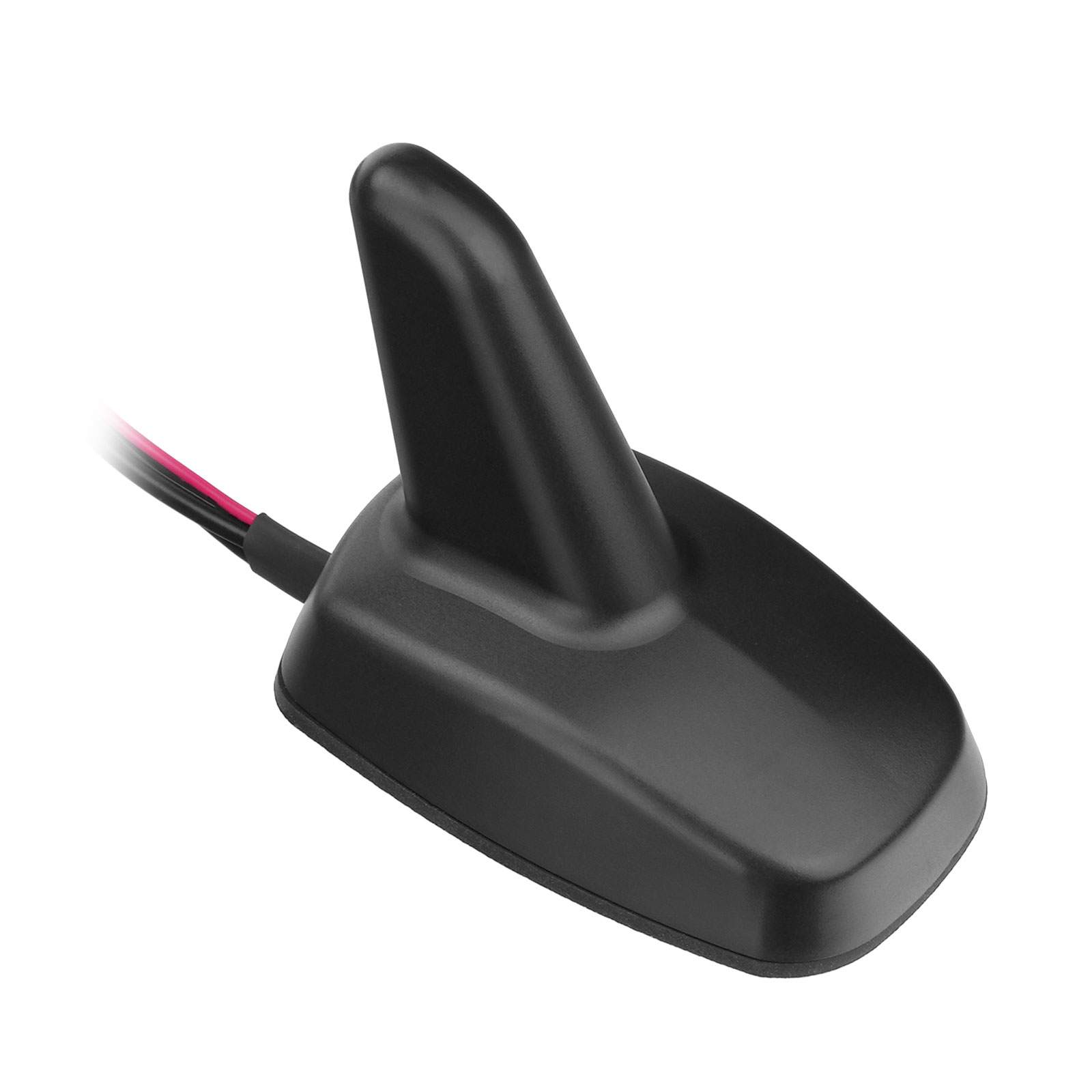

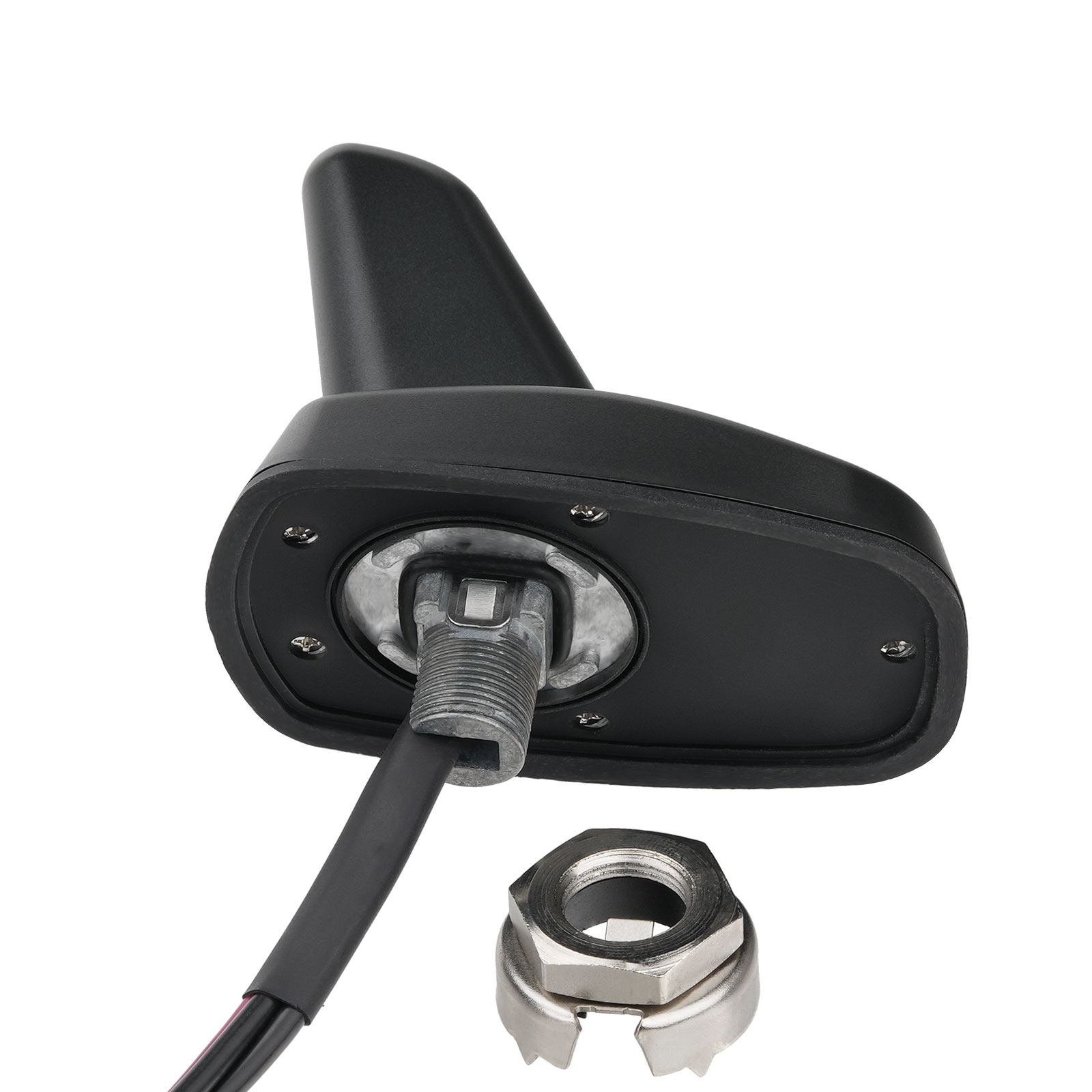

Sleek shark fin shape reduces wind noise; Includes SMA connector and robust mounting for cars, trucks, or RVs.

Product Description

Multi-Functional Shark Fin Antenna for Automotive Entertainment & Navigation

The FM/AM+GNSS antenna integrates FM/AM radio reception with high-precision GPS/BeiDou navigation, designed for seamless installation on vehicles, RVs, and commercial fleets.

FM/AM Radio Module:

Frequency Range:

FM: 87.5-108MHz

AM: 522-1710KHz

Gain:

FM: 17-23±2dB

AM: 0-5±2dB

VSWR: ≤3.0

Impedance: 75±5Ω

GNSS Module:

GPS L1: 1575.42±2.5MHz

BeiDou B1: 1561±2.5MHz

Bandwidth: >10MHz

Gain: 3.0Bi (70x70mm patch)

VSWR: ≤2.0

Polarization: Right-Hand Circular (RHCP)

LNA Specifications:

Gain: 28±2dB

Noise Figure: ≤2.0dB

Operating Voltage: 3.0-3.6V DC

Current Consumption: 8±3mA

Environmental Resilience:

RoHS/REACH compliant

Operating Temperature: -40°C to +85°C

Storage Temperature: -40°C to +90°C

Humidity: 0% to 95% (non-condensing)

Applications:

Automotive FM/AM radio systems

Fleet vehicle GPS tracking

RV and truck navigation

Marine and off-road communication
