Shark Fin Antenna with FM/AM/DAB + GPS/BeiDou GNSS, 28dB LNA, IP65 Waterproof - 9-16V Wide Voltage for Car/Truck/RV (Black)

Multi-System Integration

Combines FM/AM (87.5-108MHz/522-1710KHz), DAB (1452-1492MHz/163-240MHz), and GNSS (GPS L1/BeiDou B1) for entertainment and navigation; RHCP polarization ensures stable GPS/BeiDou signal reception.

High-Gain Low-Noise Amplifier (LNA)

28±2dB gain with ≤2.0dB noise coefficient; ≤2.0 VSWR for GNSS and ≤3.0 VSWR for radio signals, minimizing interference in urban or remote areas.

Industrial-Grade Durability

IP65-rated housing withstands extreme temperatures (-40°C to +85°C) and 95% humidity; Resists vibration, dust, and corrosion for automotive use.

Wide Voltage & Easy Installation

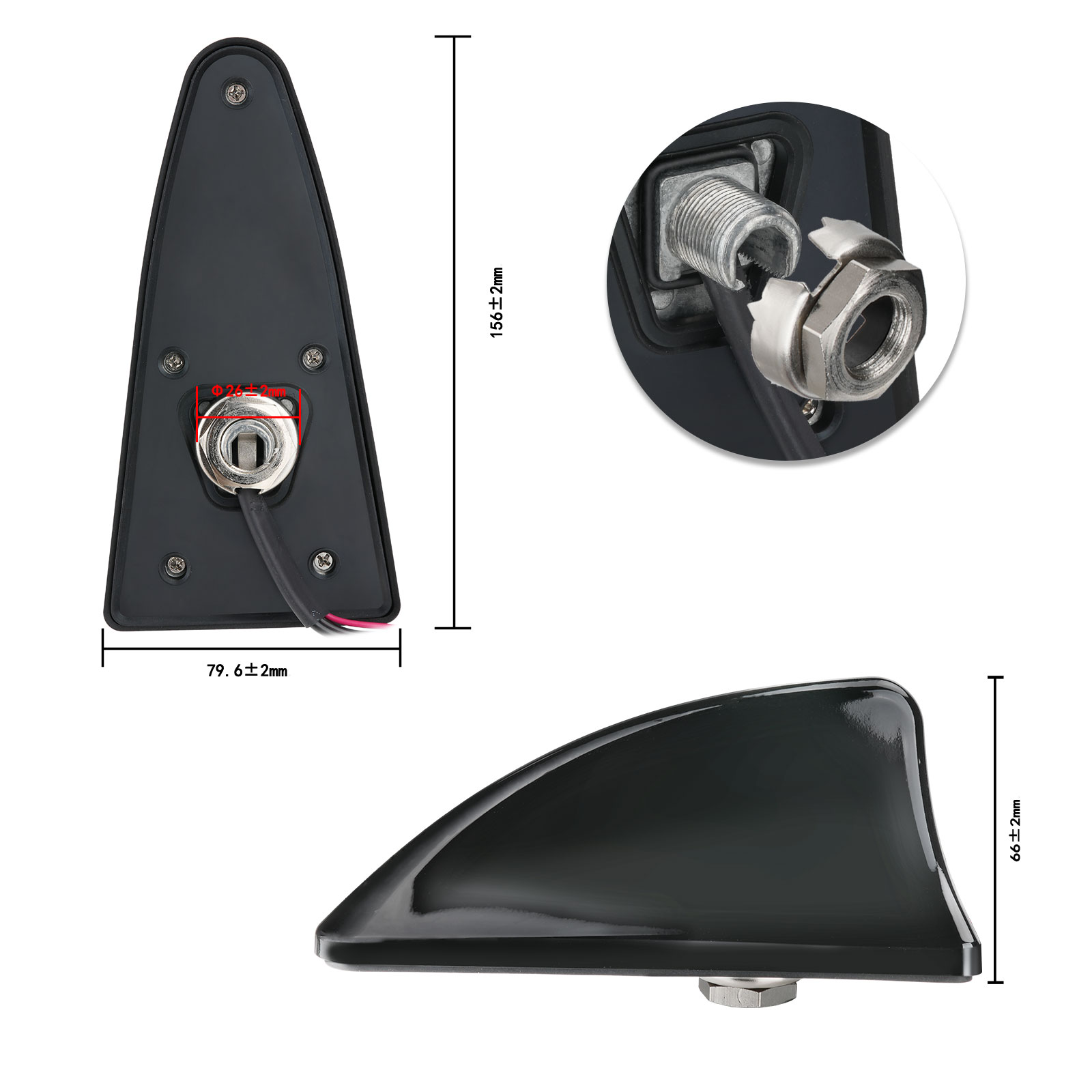

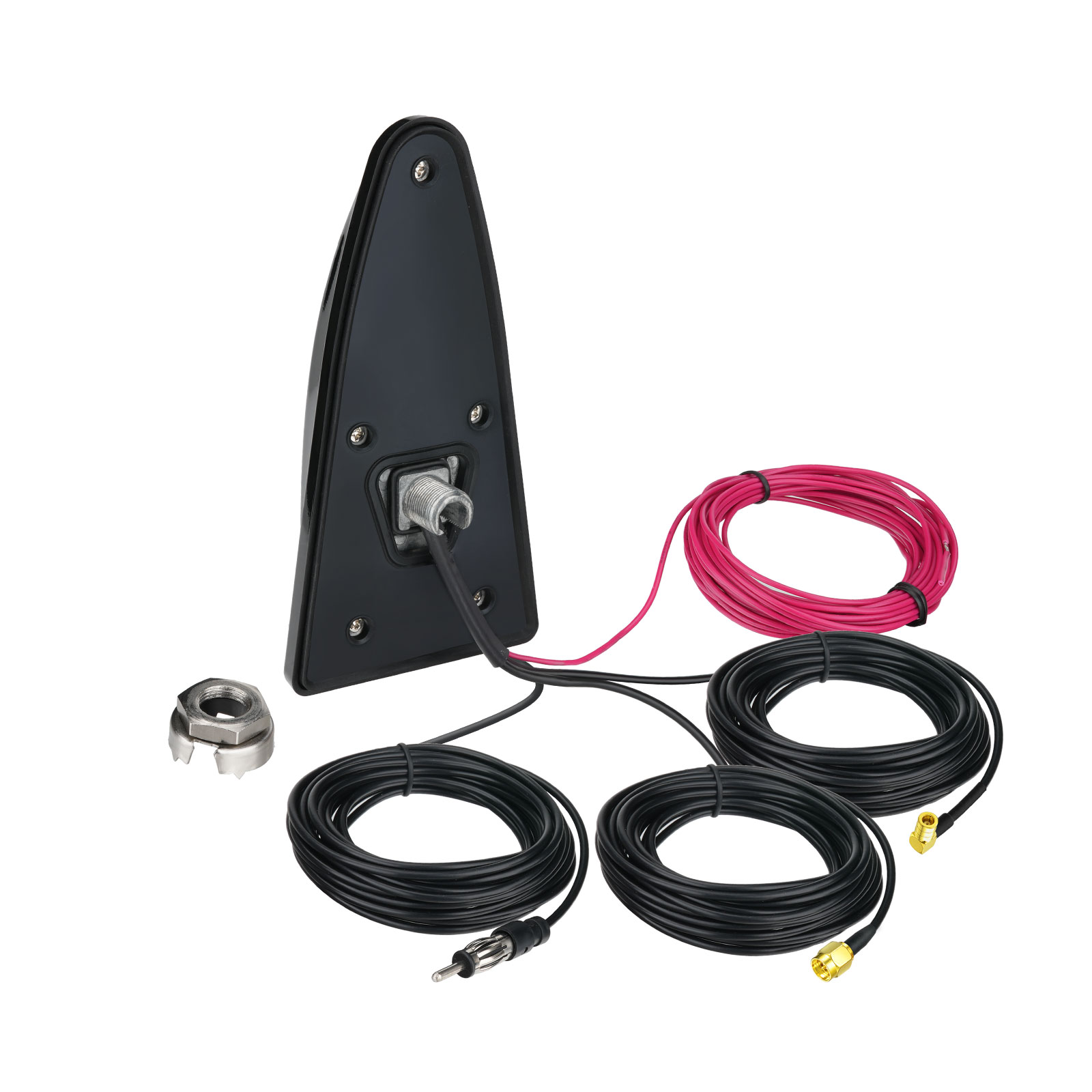

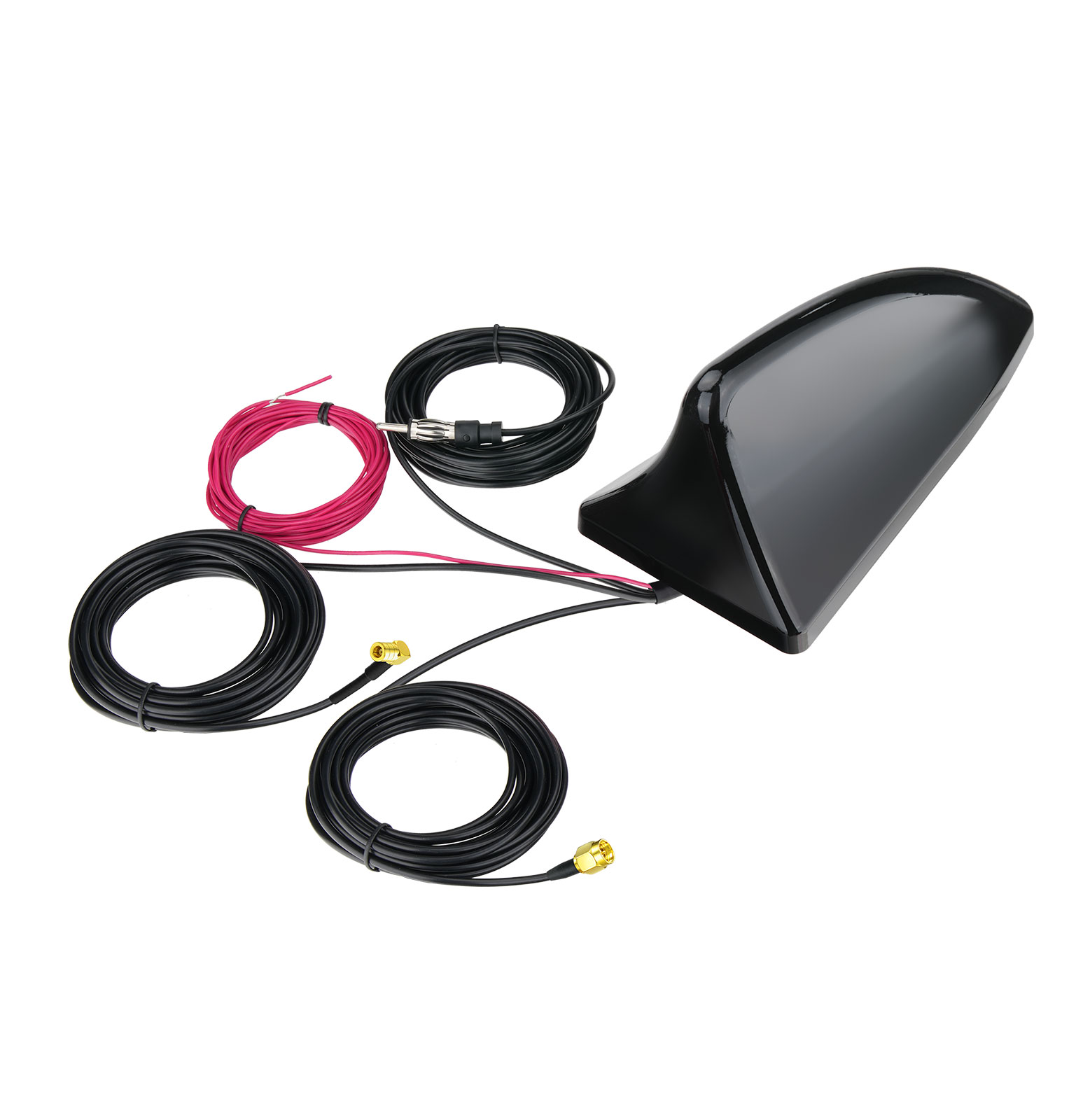

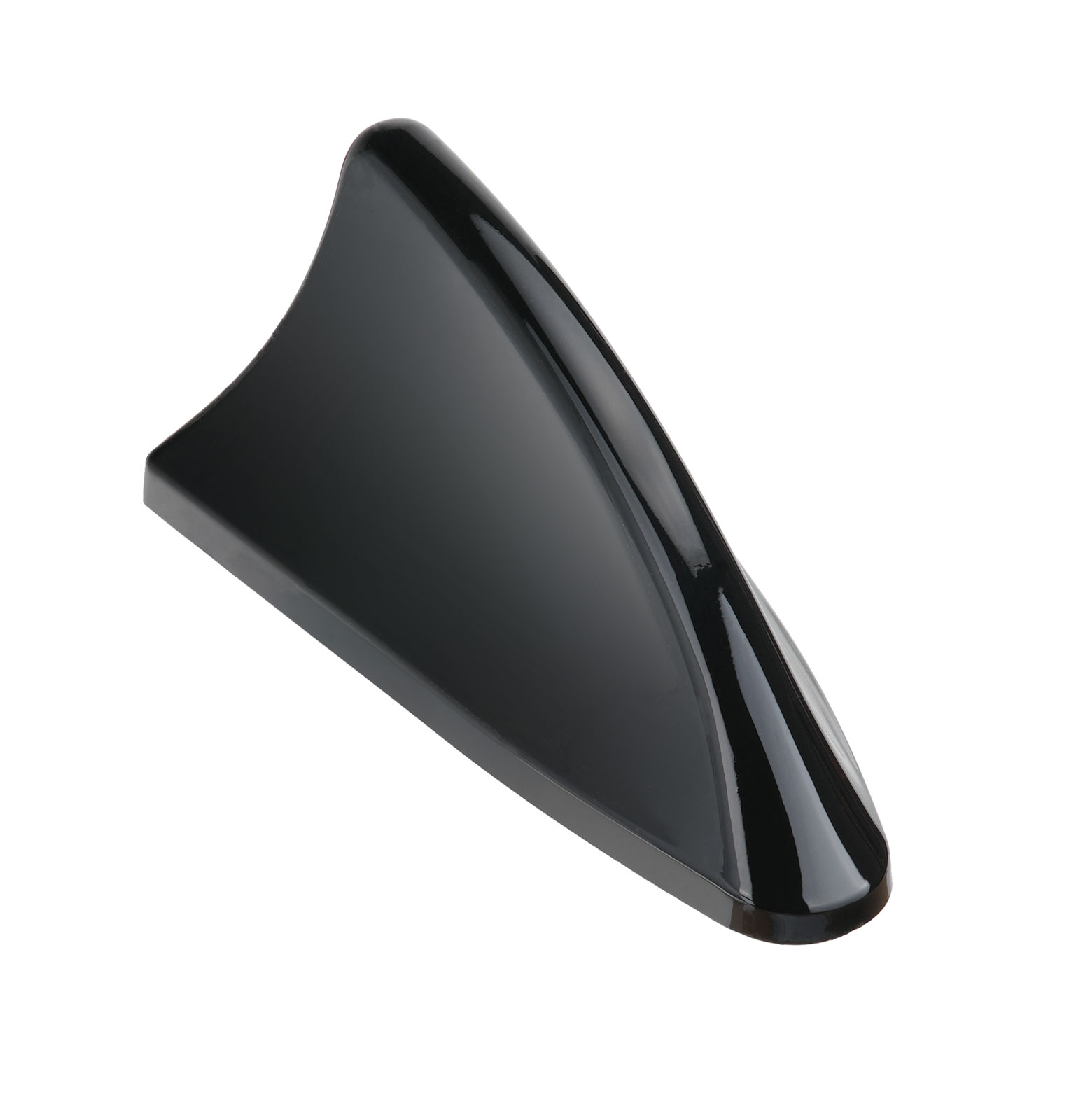

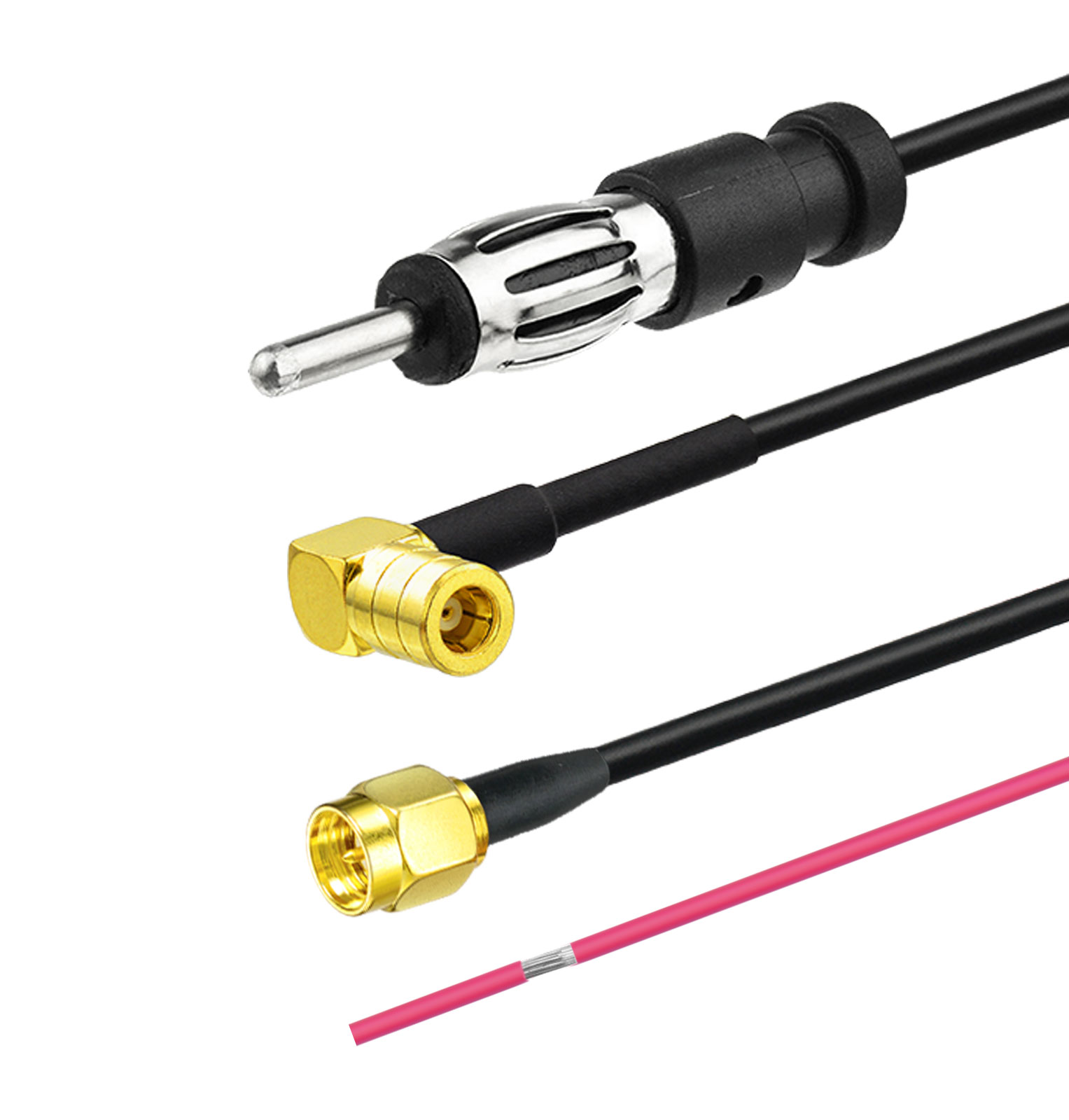

Operates on 9-16V DC (40±10mA current); Aerodynamic shark fin design with SMA/SMB connectors for secure, low-profile mounting on vehicles.

Product Description

Three-in-One Shark Fin Antenna for Automotive Entertainment & Navigation

The A-FM/AM+DAB+GNSS antenna integrates FM/AM/DAB radio reception with high-precision GPS/BeiDou navigation, designed for seamless installation on cars, trucks, RVs, and commercial fleets.

FM/AM Radio Module:

Frequency Range:

FM: 87.5-108MHz

AM: 522-1710KHz

Gain:

FM: 17-23±2dB

AM: 0-5±2dB

VSWR: ≤3.0

Impedance: 50±5Ω

DAB Digital Radio Module:

Frequency Range:

DAB-III: 163-240MHz

DAB-L: 1452-1492MHz

Gain:

DAB-III: 17-21±2dB

DAB-L: 9±2dB

VSWR: ≤3.0

GNSS Module:

GPS L1: 1575.42±2.5MHz

BeiDou B1: 1561±2.5MHz

Bandwidth: >10MHz

Gain: 3.0Bi (70x70mm patch)

VSWR: ≤2.0

LNA Specifications:

Gain: 28±2dB

Noise Figure: ≤2.0dB

Operating Voltage: 3.0-3.6V DC

Current Consumption: 8±3mA

Environmental Resilience:

RoHS/REACH compliant

Operating Temperature: -40°C to +85°C

Storage Temperature: -40°C to +90°C

Humidity: 0% to 95% (non-condensing)

Applications:

Automotive FM/AM/DAB radio systems

Fleet vehicle GPS tracking

RV and truck navigation

Marine and off-road communication
