HD-BNC Straight Crimp Plug Belden 1855A 75 Ohm Optimized

HD BNC male connectors Used as Belden 1855A coaxial cable ends and/or BNC adapters to connect audio and video equipment with BNC connections.

The 75 ohm HD-BNC connector has a small footprint, low VSWR or return loss, and supports SDI and Ultra HD video.

HD BNC connectors have a housing made of nickel-plated copper. The inner pins are gold-plated copper. The precision manufactured connector ensures long lasting quality.

HD BNC connectors are suitable for theater, audio and video cables, etc. They work in all weather conditions and are suitable for indoor/outdoor use.

Specification:

Cable Type (Terminates to): Belden 1855A, Belden 4855A,

Contact Finish: Gold

Contact Material: Phosphor Bronze

Contact Termination: Crimp

Coupling Mechanism: Bayonet

Frequency (Max GHz): 6

Gender: Plug

Impedance (Ohms): 75

Insulator Material: PTFE

Orientation: Right Angle

Size Category: Miniature

Temp (Max Degrees Celsius): 85

Temp (Min Degrees Celsius): -40

Termination Style:Cable - Crimp

Environmentally Friendly : ROHS Compliant

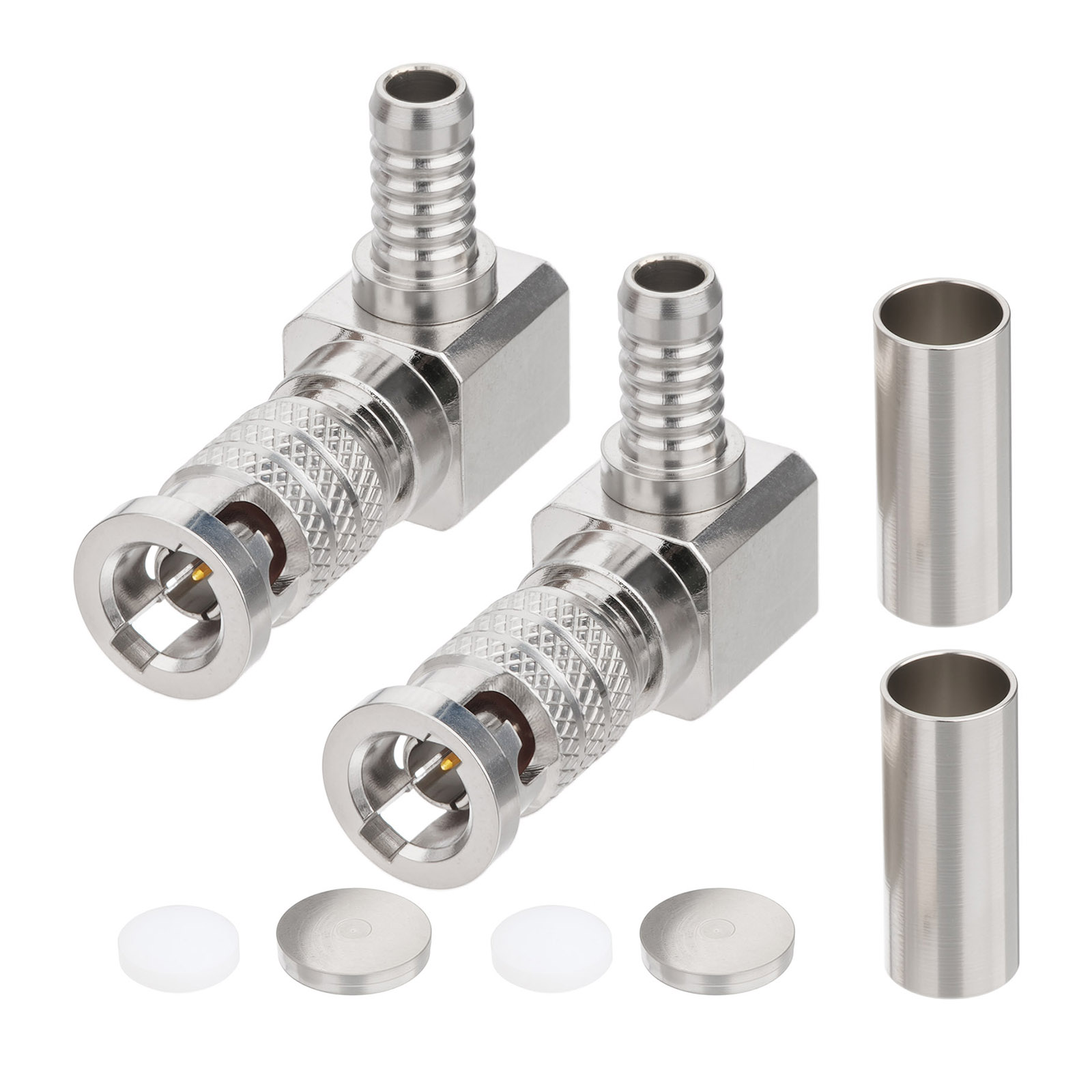

Package Content: 2pc HD-BNC Connectors
