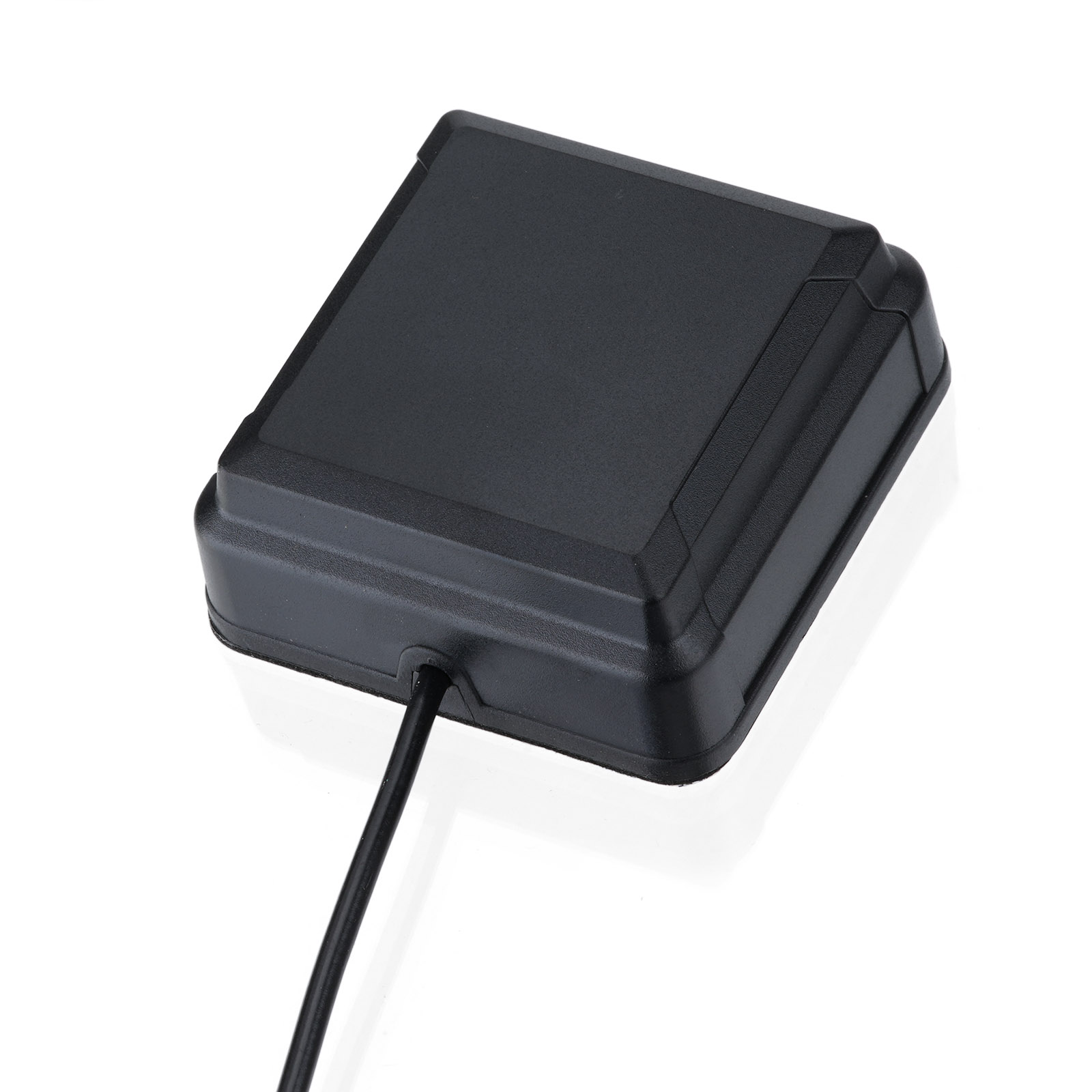

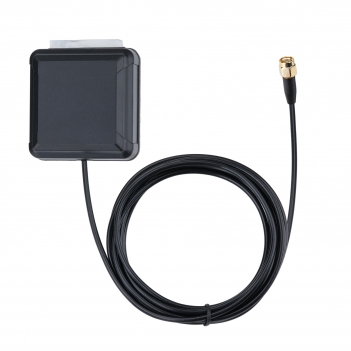

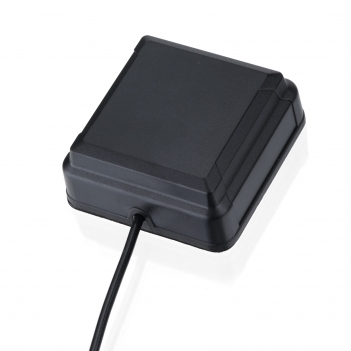

Quad-System GNSS Antenna, GPS/BeiDou/GLONASS/Galileo, 28dB LNA, IP65 Waterproof - SMA Male Connector

Global Quad-System Compatibility

Supports GPS (L1/L2/L5), BeiDou (B1C/B2a/B3), GLONASS (G1/G3), Galileo (E1/E6), QZSS, and SBAS; Ensures precise positioning in urban, forest, or high-rise environments.

High-Gain Low-Noise Amplifier (LNA)

28±2dB gain with ≤2.0dB noise coefficient; ≤2.0 VSWR and 4dBi passive gain for stable signal reception in low-elevation scenarios.

IP65 Waterproof & Customizable Design

ABS+PC housing (58.5x57x23.8mm) with ultrasonic welding; Optional connectors (SMA, SMB, MCX) and customizable cable lengths.

Wide Voltage & Industrial Resilience

Operates on 3V-12V DC (≤60mA current); Withstands extreme temperatures (-40°C to +85°C) and 95% humidity for automotive/outdoor use.

Certified Reliability

Passed 24-hour thermal cycling tests (-40°C to +85°C); RoHS/REACH compliant.

Product Description

Multi-System GNSS Antenna for High-Precision Positioning

The GNSS Antenna delivers global coverage across GPS, BeiDou, GLONASS, and Galileo systems, designed for demanding applications in automotive, IoT, and industrial navigation.

Specifications:

Frequency Coverage:

GPS: L1 (1575.42MHz), L2, L5

BeiDou: B1C, B2a, B3

GLONASS: G1, G2, G3

Galileo: E1, E5a, E5b, E6

QZSS/SBAS/IRNSS: L1/L5 bands

Electrical Parameters:

LNA Gain: 28±2dB

Noise Figure: ≤2.0dB

VSWR: ≤2.0

Impedance: 50Ω

Power Supply: 3V-12V DC

Mechanical & Environmental:

Dimensions: 58.5x57x23.8mm

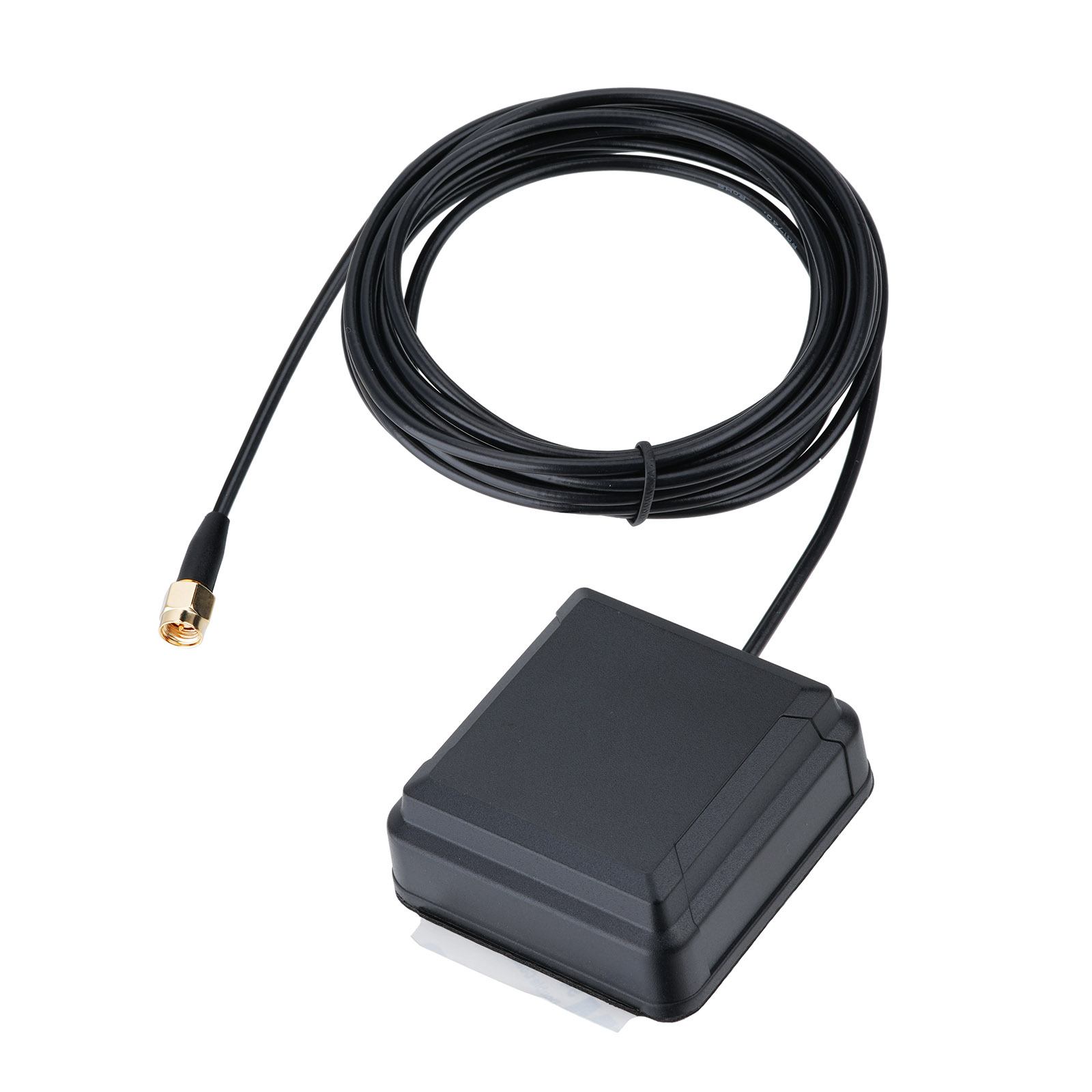

Cable: RG174 (custom lengths available)

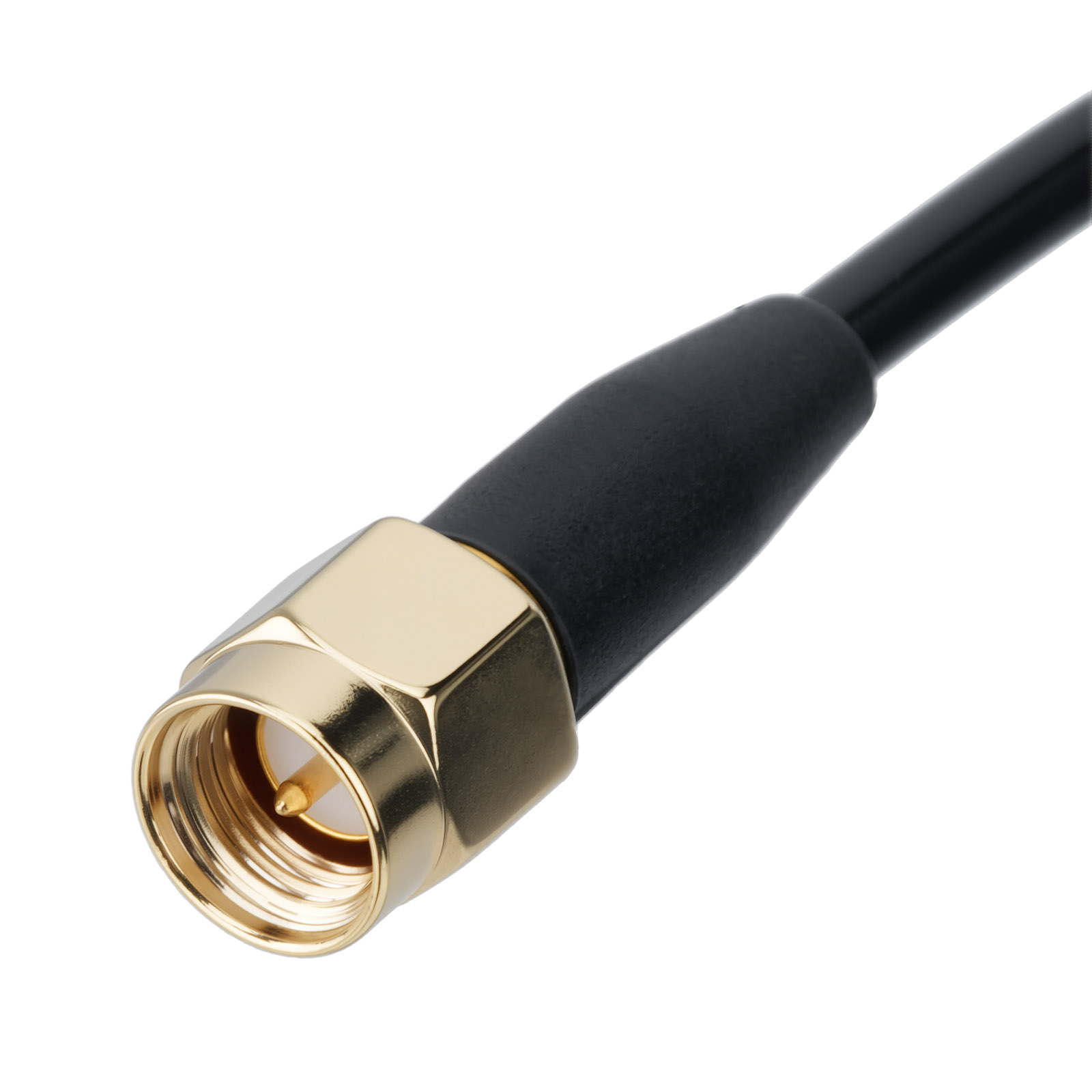

Connector: SMA Male

RoHS/REACH compliant

Operating Temperature: -40°C to +85°C

Waterproof Rating: IP65

Applications:

Automotive telematics and fleet tracking

UAV/drone navigation systems

Marine and aviation positioning

Outdoor IoT asset monitoring
