Universal Active Car Antenna work for both AM and FM radio stations.

Working Frequency: FM 80MHz-108MHz, AM 520KHz-1710KHz;FM:17~23±2dB

AM:0~5±2dB; Cable Length: 5m / 16.4 feet; Antenna Connector: DIN Plug Connector;

Improved FM reception: The active antenna is designed to boost the FM signal, allowing you to receive clearer radio signals.

Wide Voltage & Energy Efficiency

Operates on 9-16V DC with low current consumption (30±10mA for radio); Compatible with most vehicle electrical systems.Compatible with car stereo receivers media head units

Easy Installation

Feature: Perforated mounting,

Product Description

The FM/AM antenna integrates FM/AM radio reception , designed for seamless installation on vehicles, RVs, and commercial fleets.

FM/AM Radio Module:

Frequency Range:

FM: 87.5-108MHz

AM: 522-1710KHz

Gain:

FM: 17-23±2dB

AM: 0-5±2dB

VSWR: ≤3.0

Impedance: 50±5Ω

Supply Voltage: 12V DC

Current Consumption: 60mA

Connector:DIN Plug Connector

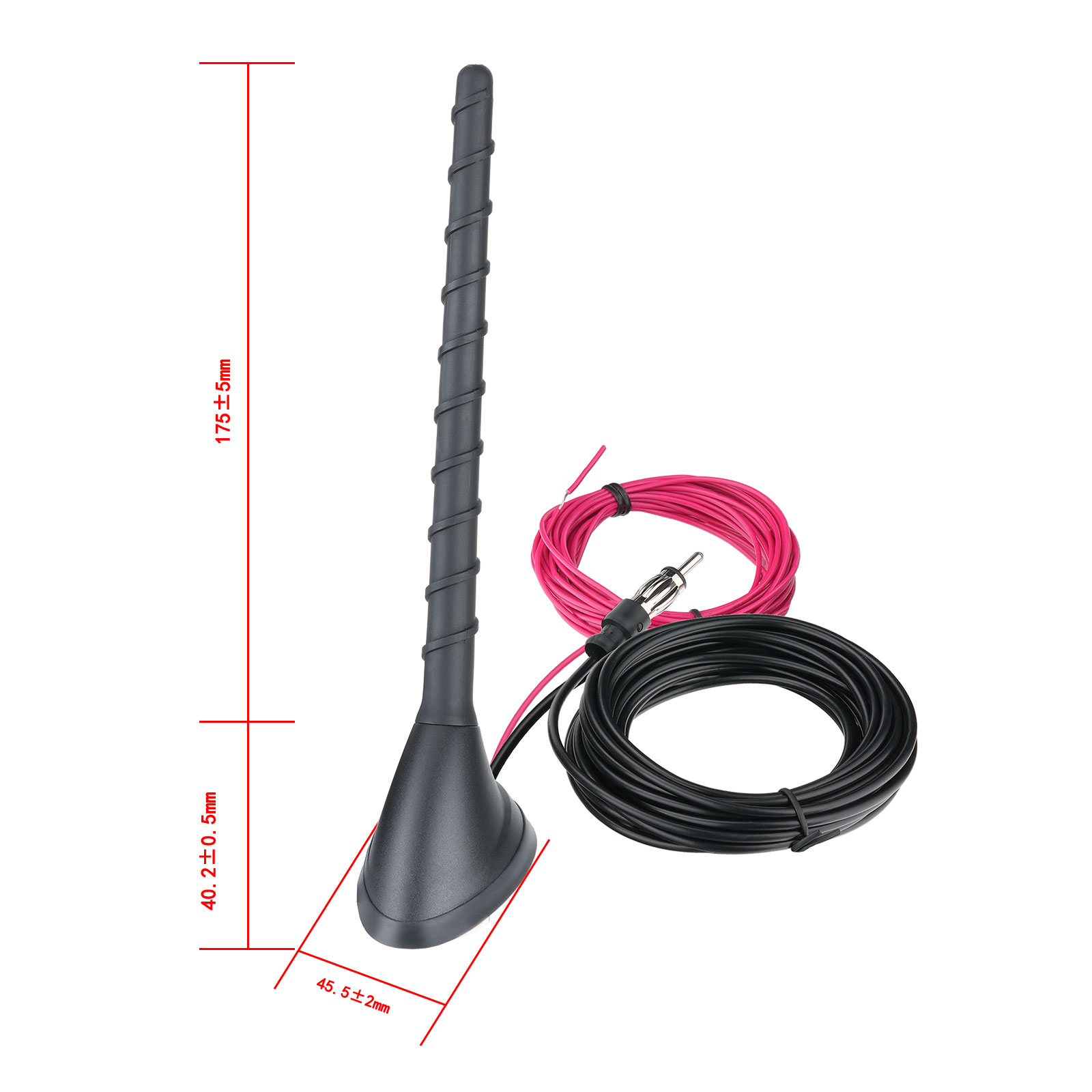

Antenna length:175mm/6.89inch

Cable Type:RG174

Cable Length : 5M/16.4FT

Material : Weatherproof ABS

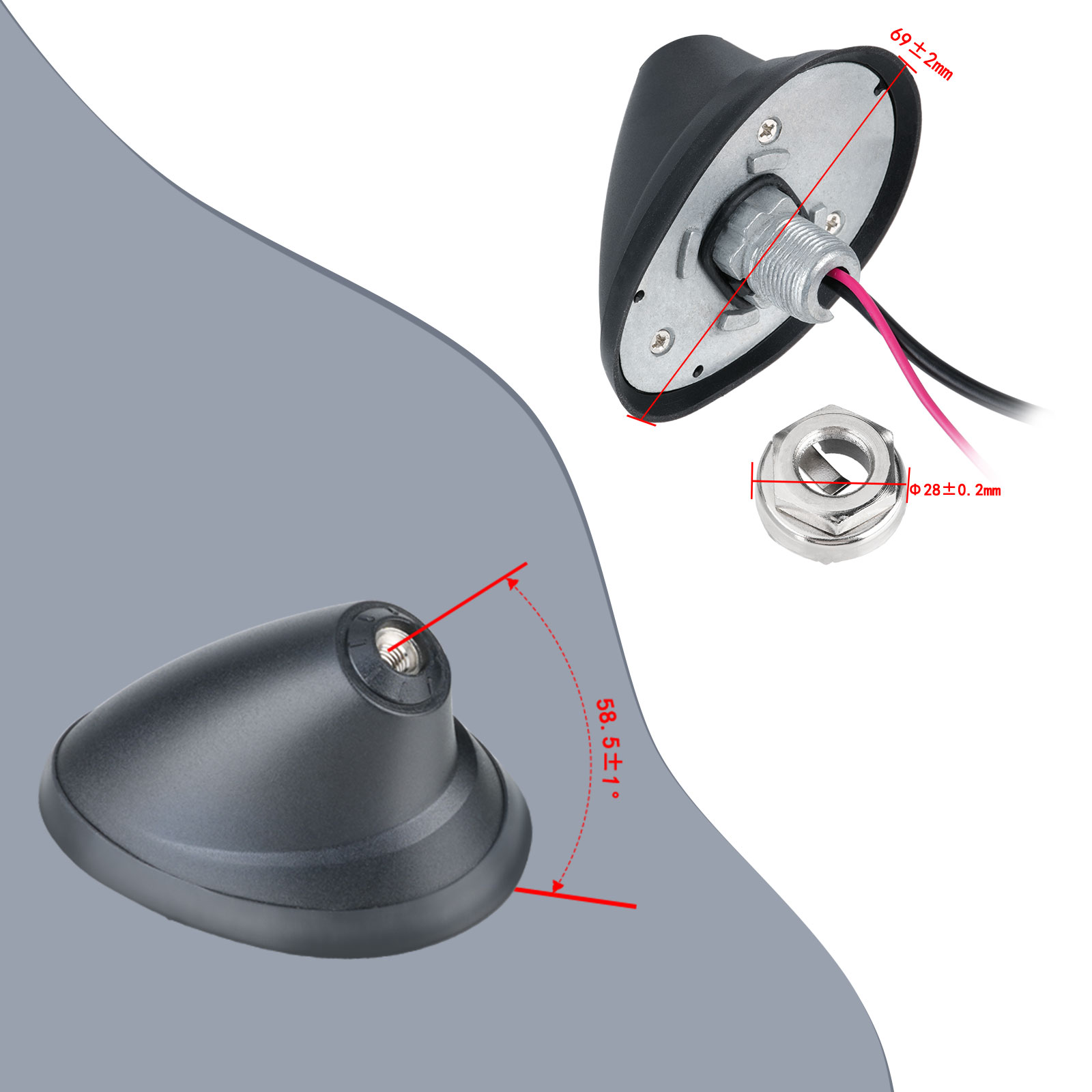

Installation: Perforated mounting

Package Content: 1 x Active FM Car Antenna

Environmental Resilience:

RoHS/REACH compliant

Operating Temperature: -40°C to +85°C

Storage Temperature: -40°C to +90°C

Humidity: 0% to 95% (non-condensing)

Applications:

Automotive FM/AM radio systems

Compatible with car stereo receivers media head units
